This array of 256 force-sensing cells, 16 rows and 16 columns, has an active area of 4"x4". It can be used as a multi-touch user input device, as a musical controller, or for any number of pressure- or force-mapping applications.

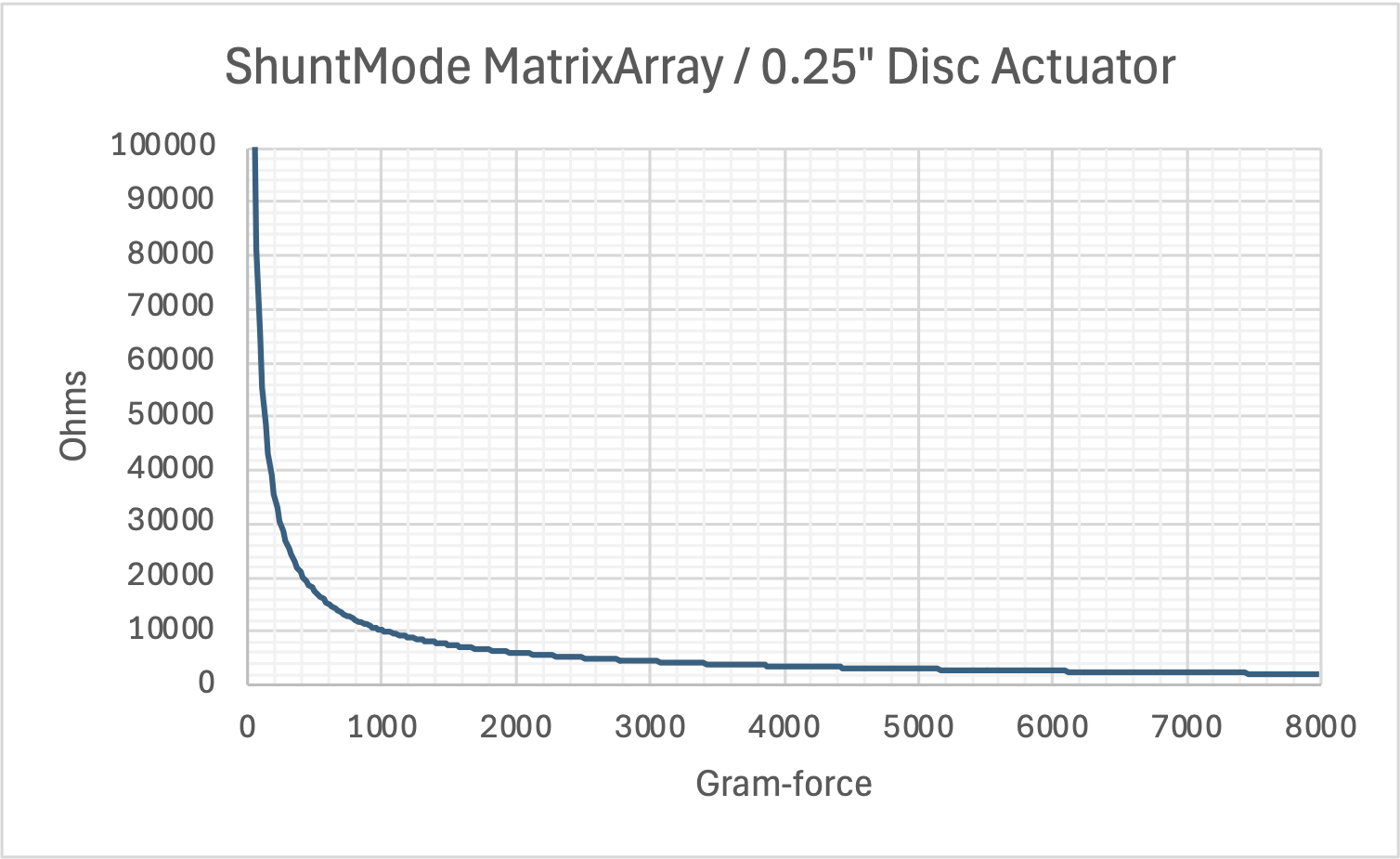

ShuntMode construction allows for measuring a wide dynamic range.
NOTE: Sensor ships with header pins, which may be soldered to the PCB by the user. The pads on the PCB have a 0.100" pitch, allowing for use of a wide range of user-supplied headers and connectors.
Need larger quantities or custom specifications? Contact us for volume pricing.
| Property | Value | Notes |
|---|---|---|
| Size Range | 4"x4" Active Area | See line diagram for overall dimensions. |
| Force Sensitivity Range | 1 lbs to 50 lbs. | With force spread on a .5" area. |
| Pressure Sensitivity Range | 5 psi to 100 psi | Mechanical Interface dependent |
| Part-to-Part Force Repeatability | approx. +/- 15% of average resistance | With consistent actuation |
| Maximum Current | .5 mA | |
| Single Part Force Repeatability | +/- 5% of established nominal resistance | With consistent actuation |
| Force Resolution | 1% full scale | |
| Stand-Off Resistance | 10M ohm or greater | |
| Switch Travel | .005" | |
| Device rise time | 15 kHz or faster | |
| Lifecycle | 1 million plus actuations | |
| Temperature Range | -15°F to + 200° F | |
| Device Thickness | .075" without connector |
