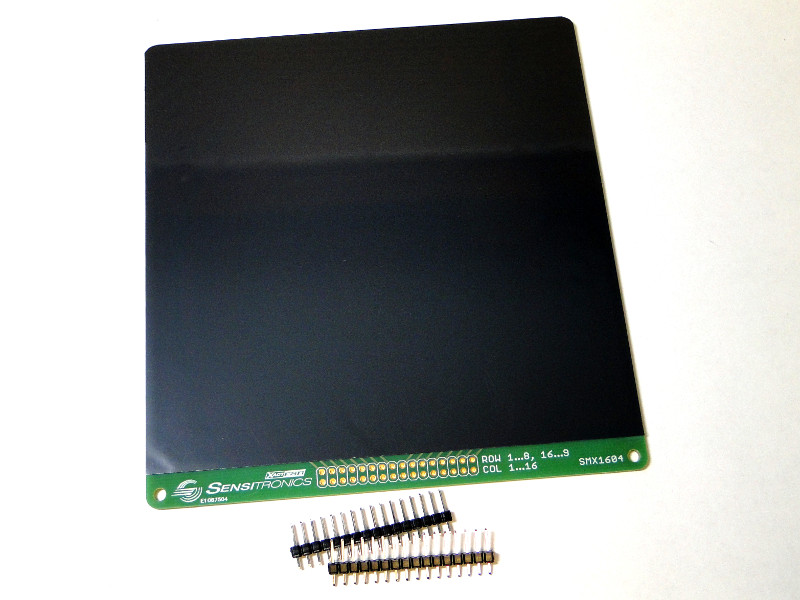

$30.00

Purchase

Price: $30.00






Volume Pricing & Customization

Call or contact us online

How Does it Work?

If you're just getting started with Matrix Arrays, we've provided some example schematics and Arduino code in our Matrix Array Tutorial.

Note: This tutorial uses a ThruMode Matrix Array, but the basic concepts are similar.


Technical Documents

Resistance vs. Force Curves, ShuntMode & ThruMode Matrix

Resistance vs. Force Curves, ShuntMode Matrix Only

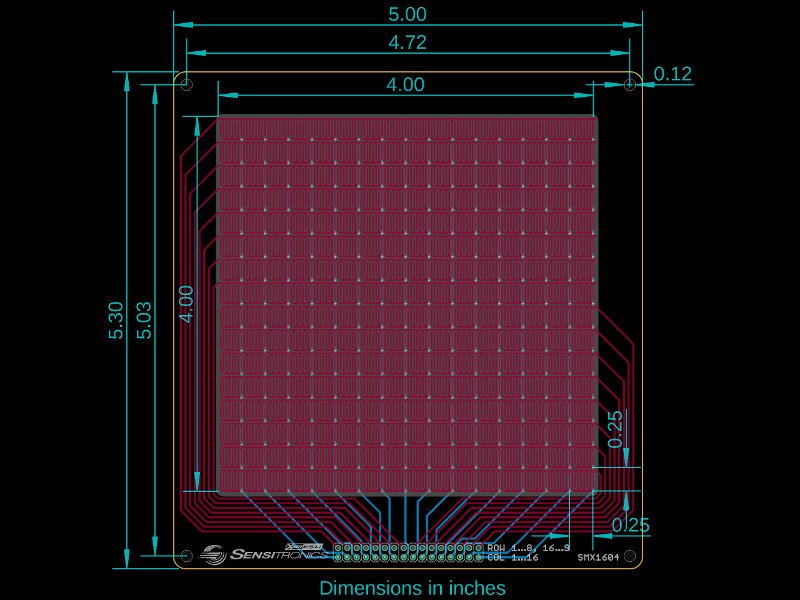

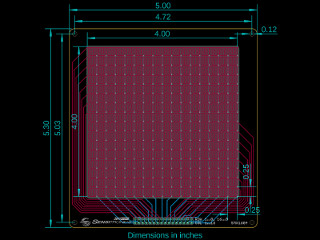

ShuntMode Sample Construction / Dimensions

Sensor Characteristics

Property Value Notes
Size Range 2"x3" Active Area See line diagram for overall dimensions.
Force Sensitivity Range 1 lbs to 50 lbs. With force spread on a .5 in� area.
Pressure Sensitivity Range 5 psi to 100 psi Mechanical Interface dependent
Part-to-Part Force Repeatability approx. +/- 15% of average resistance With consistent actuation
Maximum Current .5 mA
Single Part Force Repeatability +/- 5% of established nominal resistance With consistent actuation
Force Resolution 1% full scale
Stand-Off Resistance 10M ohm or greater
Switch Travel .005"
Device rise time 15 kHz or faster
Lifecycle 1 million plus actuations
Temperature Range -15°F to + 200° F
Device Thickness .017"
Pliability
