Technical Documents

Resistance vs. Force Curves for High, Med, Low examples

Resistance vs. Force Curve, High Res Sensor Example

Resistance vs. Force Curve, Medium Res Sensor Example

Resistance vs. Force Curve, Low Res Sensor Example

Typical Consruction / Dimensions

Sensor Characteristics

Property Value Notes

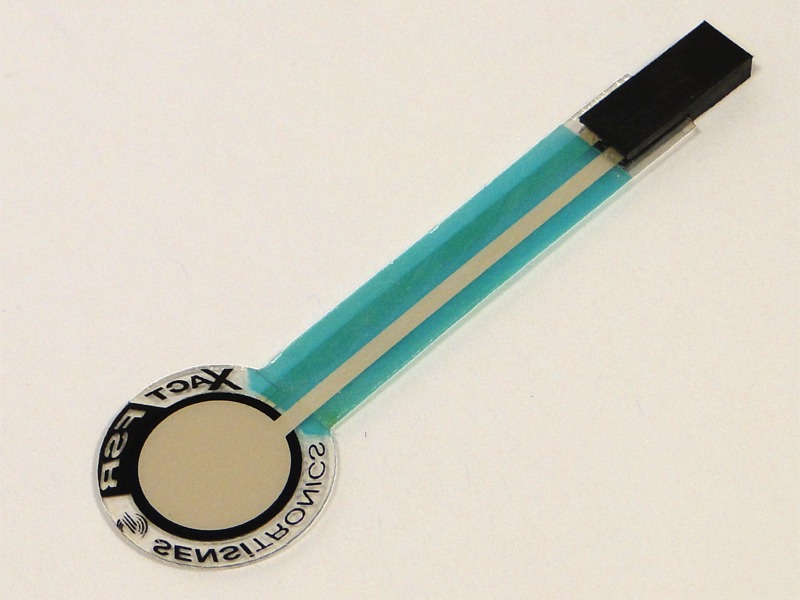

Size Range .5" Diameter. See line diagram for overall dimensions.
Force Sensitivity Range .25 lbs. to 6 lbs. With force spread across active area.
Pressure Sensitivity Range .3 psi to 30 psi Mechanical Interface dependent
Part-to-Part Force Repeatability approx. +/- 15% of average resistance With consistent actuation
Maximum Current .5 mA
Single Part Force Repeatability +/- 5% of established nominal resistance With consistent actuation
Force Resolution 1% full scale
Stand-Off Resistance 10M ohm or greater
Switch Travel .005"
Device rise time 15 kHz or faster
Lifecycle 1 million plus actuations
Temperature Range -15°F to + 200° F
Device Thickness .017"
Pliability
